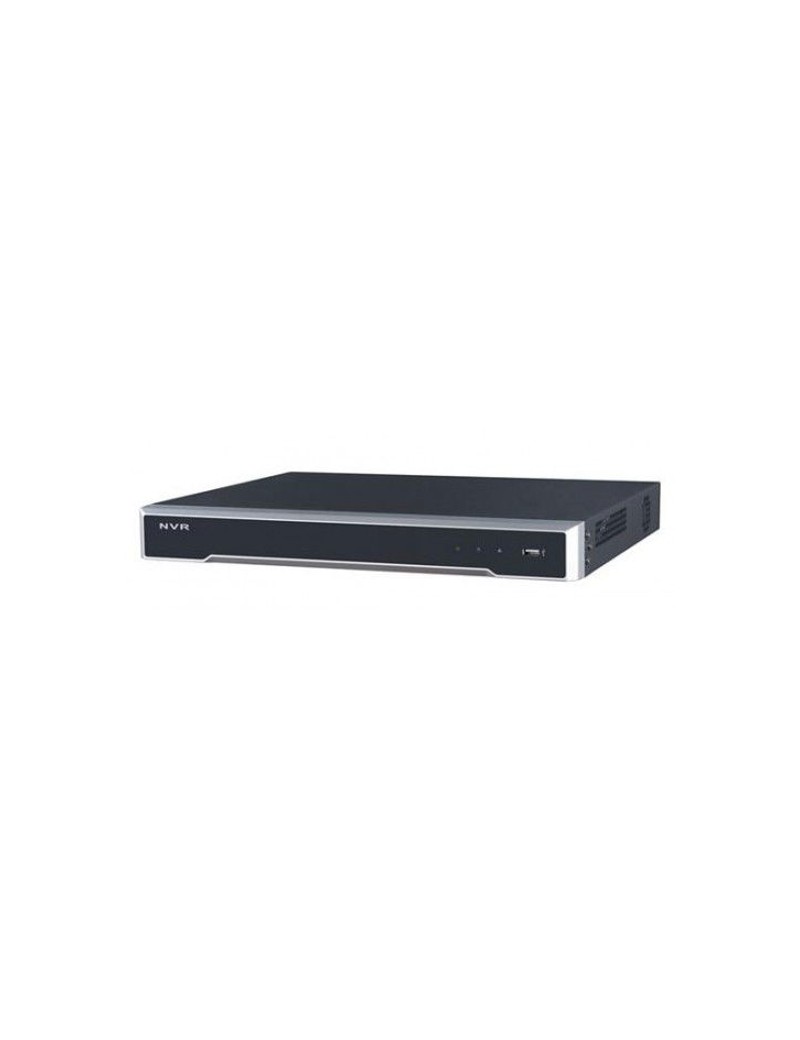

8 Channel NVR with V 4 GUI
The DS-7608NI-I2/8P is an Embedded 8 Channel Plug and Play NVR is a new generation recorder developed by Hikvision independently which has multiple advanced technologies, such as audio and video decoding technology, embedded system technology, storage technology, network technology and intelligent technology. It can both work alone as a recorder and/or interfaces with other devices to form a comprehensive surveillance system. The DS-7608NI-I2/8P (8 Channel) and DS-7616NI-I2/16P (16 Channel) NVRs are widely applied in the areas of finance, public security, military, communication, transportation, education, etc
DVR is supplied with 1 x 3TB HDD Fitted. Supports up to 2 x 6TB HDD.
100% Secure Payments
Australian Wide Flat Rate Delivery
Fast Response
| Video/Audio Input | ||
|---|---|---|
| IP video input: | 8-ch | |
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) | |
| Network | ||
| Incoming bandwidth: | 80Mbps | |
| Outgoing bandwidth: | 256Mpbs | |
| Remote connection: | 128 | |
| Video/Audio Output | ||
| HDMI Output: | 1ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
|
| Recording Resolution: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Audio Output: | 1-ch, RCA (Linear, 1kΩ) | |
| Synchronous Playback: | 8-ch | |
| VGA Output: | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz | |
| Decoding | ||
| Live view / Playback: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Capability: | 4-ch@8MP,16-ch@1080P | |
| Hard Disk | ||
| SATA: | 2 SATA interfaces for 2 HDDs | |
| Capacity: | Up to 6TB capacity for each HDD | |
| External Interface | ||
| Network Interface: | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface | |
| Serial Interface: | RS-232 | |
| USB Interface: | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 |
|
| Alarm In: | 4-ch | |
| Alarm Out: | 1-ch | |
| POE | ||
| Interface: | 8 independent 10 /100 Mbps PoE Ethernet interfaces | |
| Max. Power: | 120W | |
| Supported Standard: | AF and AT | |
| General | ||
| Power Supply: | 100 to 240 VAC, 50 to 60 Hz | |
| Consumption(without hard disk and POE): | ≤15 W | |
| Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) | |
| Working Humidity: | 10 % ~ 90 % | |
| Chassis: | 380 chassis | |
| Dimensions: | 380 × 290 ×45 mm (15.0"× 11.4" × 1.8") | |
| Weight(without HDD): | ≤ 3 Kg (6.6 lb) | |
