All new, all intelligent, and all sensor. German engineering and Silicon Valley design. Completely re-engineered but built upon 13 years’ sensor experience. And it’s still super simple to install.

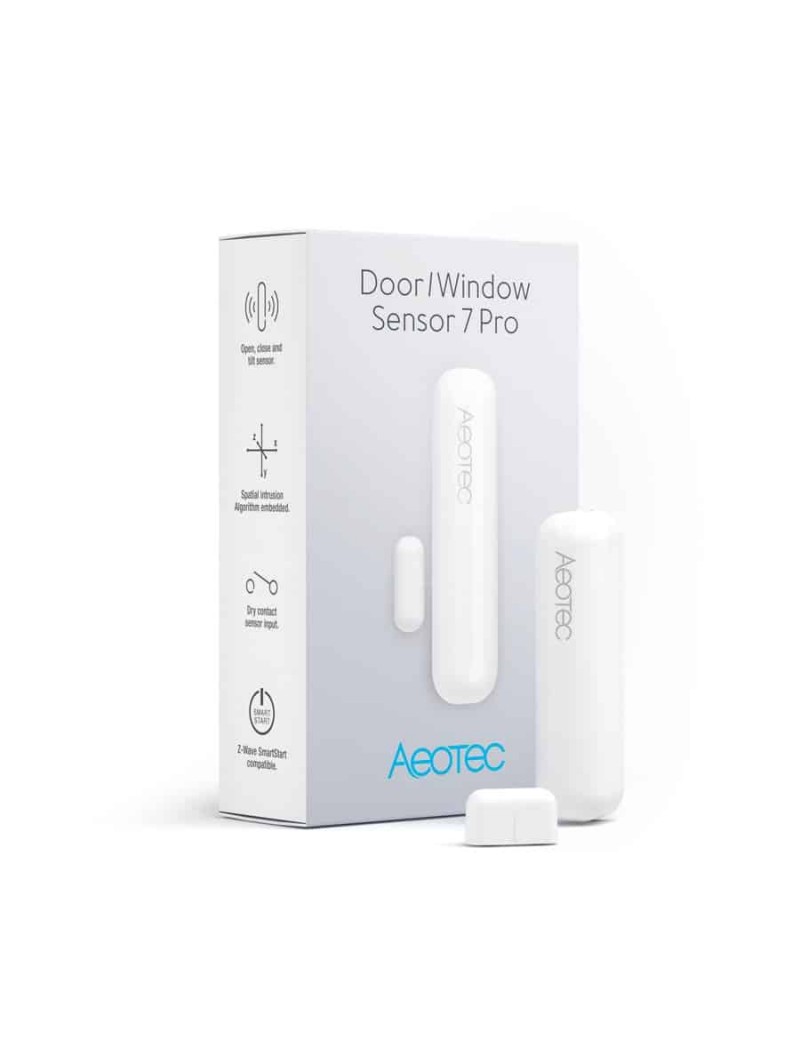

The Aeotec Door/Window Sensor 7 is a Z-Wave Plus device for detecting if a door or window is opened or closed. Small, battery powered (included) and easily attached to virtually anything that opens or closes around your home. Door Window Sensor 7 also includes universal "dry contact" terminals allowing you to wire in other external sensors.
Featuring a universal binary input as one of its 3 sensors, Door / Window Sensor 7 can be wired to the low voltage, dry contact output of 3rd party electronics. Once connected it can translate their status signals to Z-Wave, allowing your smart home system to become even more intelligent without having to replace your home’s existing electronics. Door / Window Sensor 7’s inexpensively takes automation and intelligence to a whole new level.
Door / Window Sensor 7 is your first line of defence against an intruder. The instant a door or window opens, your smart home system can alert you and activate compatible sirens, cameras and other security devices. Sometimes it’ll know even before anything opens. With Aeotec’s patented Spatial Intrusion Algorithm™ built in, Door / Window Sensor 7 can even detect some break-ins before they happen, alerting you before anyone breaks in.
Whether privately triggered by your geolocation or the arming of a smart security system, Door / Window Sensor 7 can remind you to close the doors and windows you left open. When combined with Z-Wave controllers, such as Aeotec’s Nano Shutter, it can even close them for you.
Attached to internal doorways, Door / Window Sensor 7 can provide the intelligence that discreetly powers your smart home. Open a room and everything from its lights to its heating can be activated. Attached to objects, such as safes or alcohol cabinets secured, and you can be instantly alerted whenever they’re touched.
Instant intelligence. You depend on it to keep your home safe. And you depend on it to make your home smart. And Door / Window Sensor 7 helps do both instantly.
Every home is diferent, but Door / Window Sensor 7 had been carefully crafted to be easily installed in any home, no matter its shape or size. 13 years’ experience of designing security sensors has allowed us to make it our smallest yet. And our most universal.
Installable in only moments, Door / Window Sensor 7 can be mounted to any door or window frame with as little as the provided double-sided tape. It even takes smaller spaces into consideration being the only Z-Wave door or window sensor to come with 2 detection-magnets including slimline rare-earth magnet technology first pioneered by Aeotec.
RF Protocol
|
Z‐Wave Plus (500 series chip)
|
RF Frequency
|
921.42Mhz ‐ AU/NZ approved RF for Z‐wave
|
Z‐Wave device type
|
Binary sensor
|
Power
|
1 CR123A batteries required. (included)
|
Operation Range
|
Up to 40m without obstacles
|
Application
|
Indoor use only
|
Operation temperature
|
0 ~ 55 °C
|
Storage temperature
|
‐10 ~ 80 °C
|
Color
|
White
|
Weight
|
50g
|
Housing
|
ABS
|
Dimensions
|
4.8 x 2.8 x 1.3 inches
|
Compliance
|
Z-Wave Plus certified
|
Warranty | 12 Months |
