The ultimate way to connect Zigbee or Thread devices to Home Assistant. Fully certified and approved for Australia and New Zealand. The antenna and base are precisely tuned to the ideal Zigbee & Thread wavelength, working in harmony to improve reliability and maximise range. Easy plug-and-play setup with Home Assistant via its USB adapter.
100% Secure Payments
Australian Wide Flat Rate Delivery
Fast Response
Description

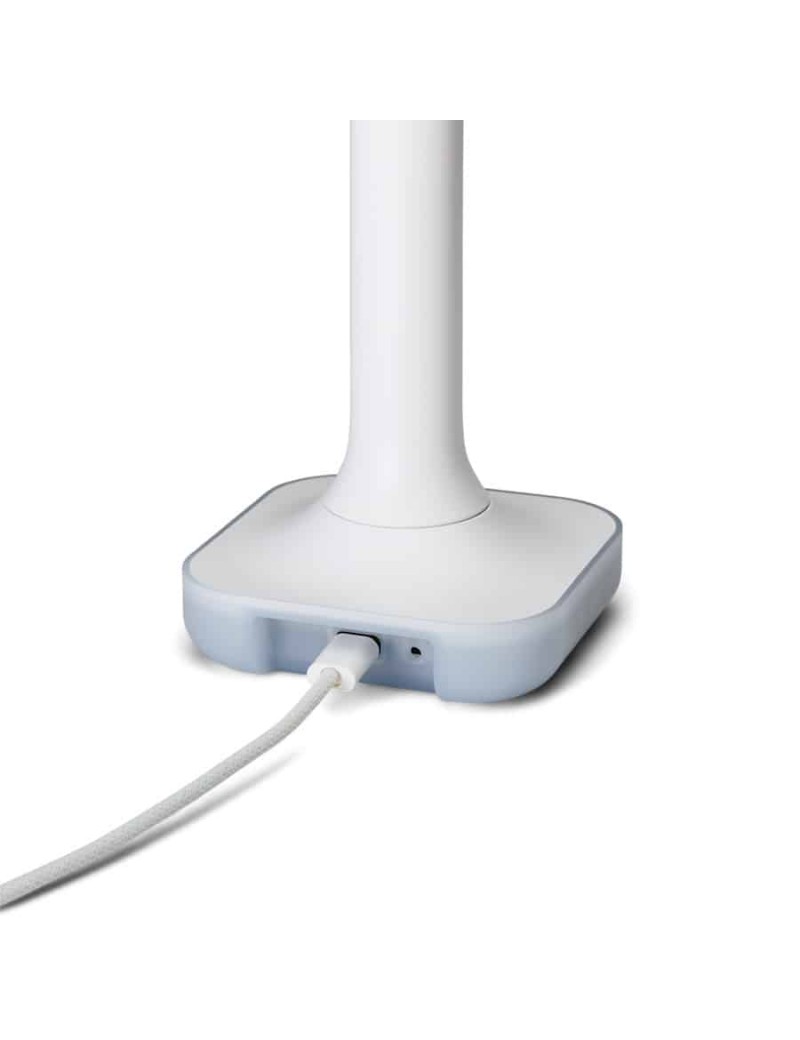

The Home Assistant Connect ZBT-2 Zigbee Adapter from Nabu Casa is a next-generation USB Zigbee antenna that gives your Home Assistant setup a rock-solid, local Zigbee network. It’s based on a powerful Silicon Labs chip and is designed to work seamlessly with Home Assistant out of the box, with optimal firmware, coordinator settings, and channel selection handled for you.
| Hardware | |
| SoC: | Silicon Labs MG24 / ESP32-S3 (USB-serial bridge) |
| Weight: | 157 g |
| Dimensions: | 83mm x 83mm x 179mm |
| Power / Data: | USB-C, 5 V DC, 500mA |
| Antenna | |
| Frequency range: | 2400-2483.5 MHz |
| Transmit power: | 8 dBm |
| Peak gain: | 4.16 dBi |
| Wireless pattern: | Omnidirectional |
| Antenna dimensions: | 24 mm diameter, 164mm height |
| Supported protocols: | Zigbee 3.0 or Thread |
| Environmental | |
| Temperature: | 0 °C to 65 °C (antenna -40 to +85 °C) |
| Humidity: | Non-condensing |
| Room conditions: | Indoor use only. Keep in dry, not excessively dusty environment as this can cause damage to the unit. |
The ultimate way to connect Zigbee or Thread devices to Home Assistant. Fully certified and approved for Australia and New Zealand. The antenna and base are precisely tuned to the ideal Zigbee & Thread wavelength, working in harmony to improve reliability and maximise range. Easy plug-and-play setup with Home Assistant via its USB adapter.
